- CAT III 600V and CAT II 1000V
- Measures AC and DC Voltage to 1000V
- MIN/MAX Recordings
- Auto Range with Manual Overrid
- Frequency measurement to 10MHz
- -20°C to 760°C Temperature measurement
- Capacitance to 4000μF
- Data Hold
- Duty Cycle
- 6000 Count LCD with bargraph
- Auto Power Off
- Overmould rubber housing

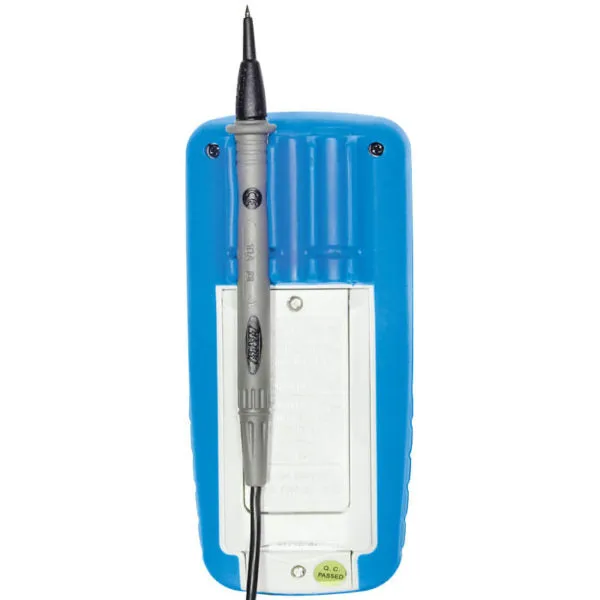

- Integrated Test Lead Holder
- Back light for dimly lit areas

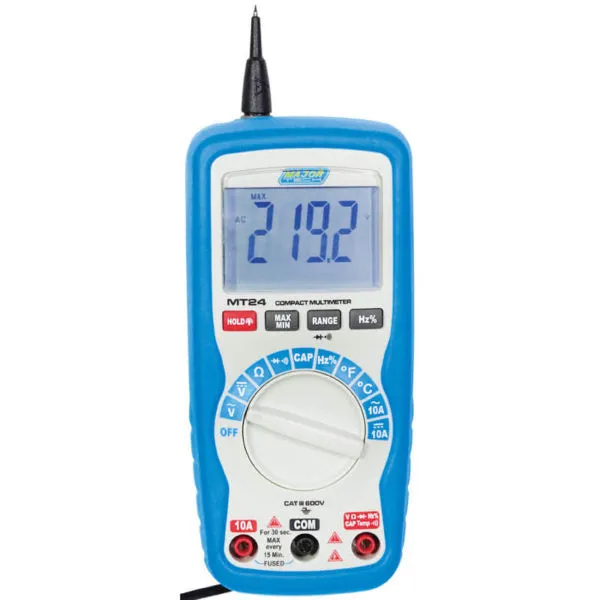

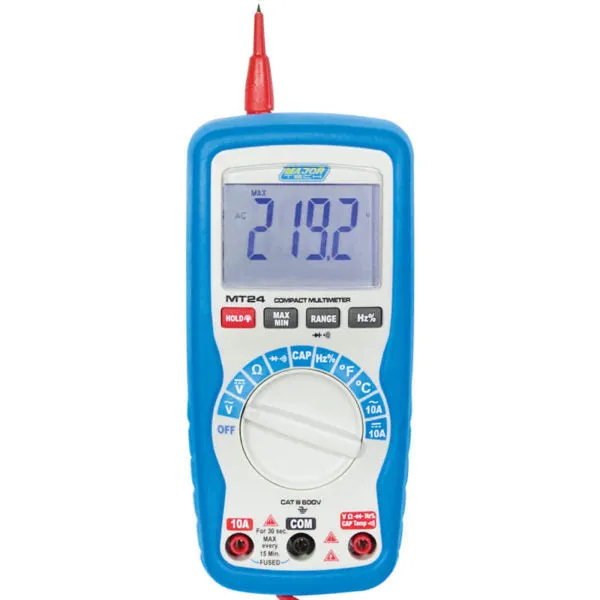

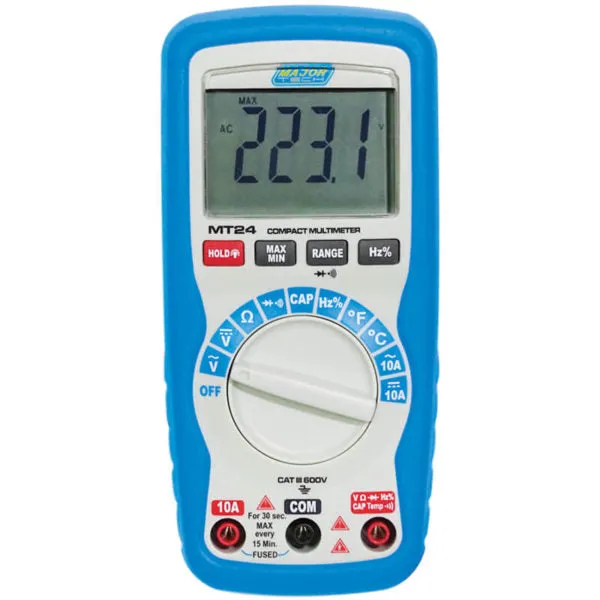

The MT24 is a compact meter with double moulded rubber housing and meets the International Standard IEC-61010-1 CAT lll 600V. The large LCD display screen has a white backlight for use in arduous areas. This meter is a very economical tester ideally suited for everyday use by electricians, electronic technicians as well as the air conditioning industry. The MT24 is an autoranging multimeter with the option of manual override, and has a 6000 count LCD display with a 61 segment analogue bargraph. This meter offers features of MIN/MAX recordings, Data Hold, Frequency measurement with Duty Cycle, Capacitance measurement of up to 4000μF and resistance of 60MΩ. It has the added function of temperature measurement in either °C or °F, with a range from -20°C up to 760°C. An adaptor is supplied which converts the 4mm input to accept K-Type thermocouples.
Specifications
| Function | Range | Resolution | Accuracy |
| DC Voltage | 600.0mV – 1000V | 0.1mV | ±(1.2% 2 Digits) |
| AC Voltage | 6.000V – 1000V | 0.1mV | ±(1.5% 3 Digits) |
| DC Current | 6A – 10A | 1mA | ±(2.5% 5 Digits) |
| AC Current | 6A – 10A | 1mA | ±(3.0% 5 Digits) |
| Duty Cycle | 0.1 to 99.90% | 0.001 | ±(1.2% 2 Digits) |
| Resistance | 600.0Ω – 60.00MΩ | 0.1Ω | ±(1.2% 2 Digits |
| Frequency | 9.999Hz – 10MHz | 0.001Hz | ±(1.2% 3 Digits) |
| Capacitance | 40.00nF – 4000μF | 10pF | ±(3.0% 5 Digits) |
| Temperature | -20°C to 760°C | 1°C | ±(3.0% 5°C) |
| AC Bandwidth | 50Hz to 60Hz | ||
| Digital Display | 6000 | ||
| Continuity | Yes | ||
| Diode Test | Yes | ||
| Overrange Indication | Yes | ||
| Input Impedance | 7.8MΩ VDC & 7.8MΩ VAC | ||
| Min Max | Yes | ||
| Data Hold | Yes | ||
| Enclosure | Double moulded | ||
| Low Battery Indication | Yes | ||
| Battery | 9V | ||
| Weight | 255g | ||
| Dimensions | 150 x 70 x 48mm | ||
| Safety Specs | IEC61010-1 CAT III 600V | ||
Safety Ratings
Includes

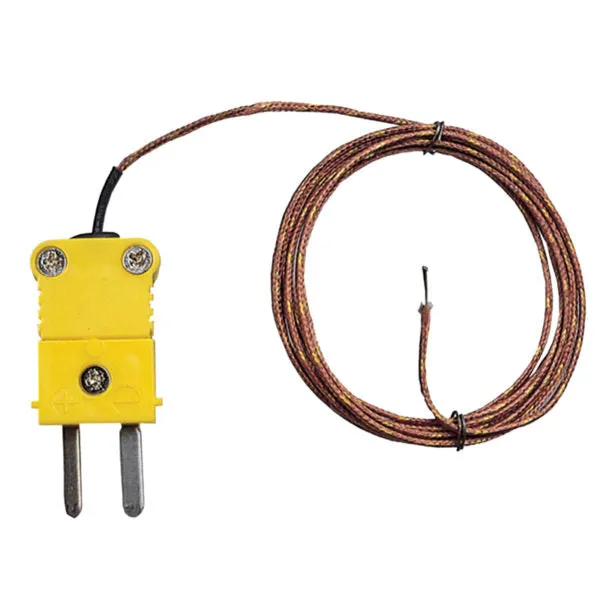

- Type-K Temperature Probe

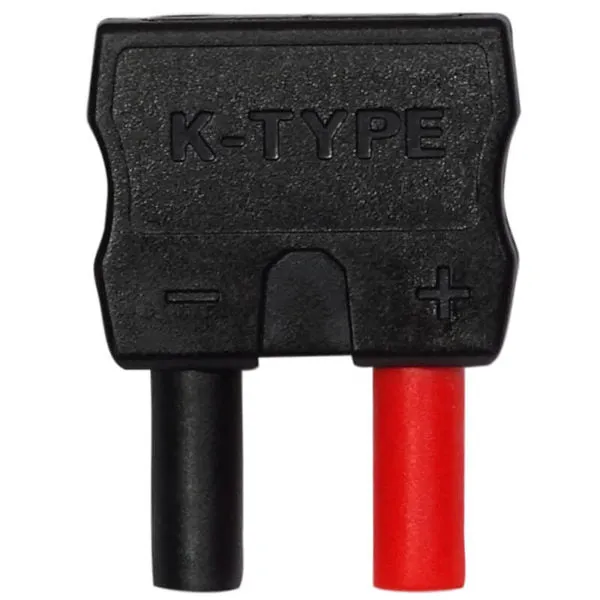

- Type-K Adaptor
- 9V Battery
- Instruction Manual
